臺式熒光蛋白激發光源LUYOR-3421
臺式熒光蛋白激發光源LUYOR-3421

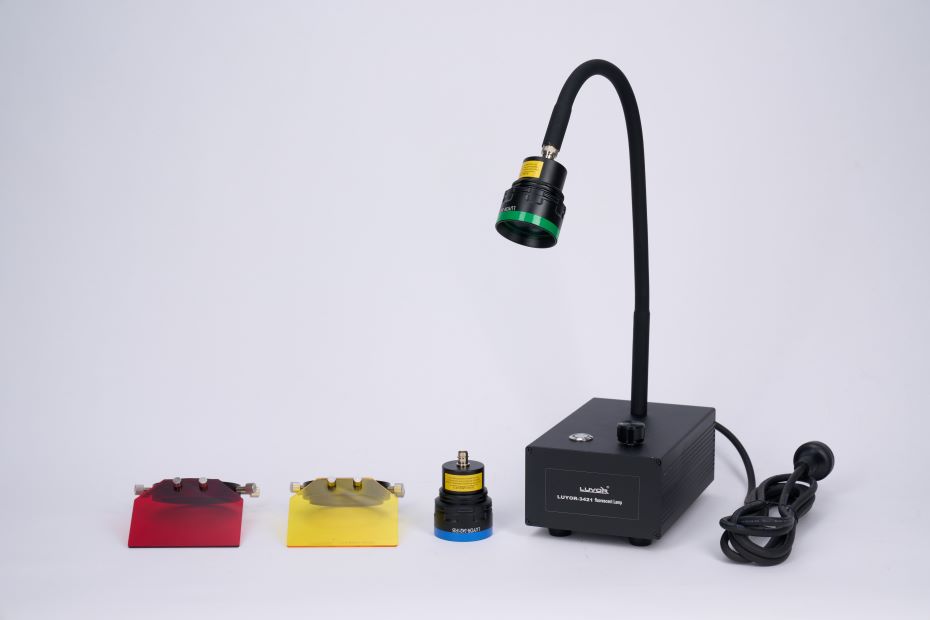

LUYOR-3421臺式熒光蛋白激發光源是在LUYOR-3420基礎上升級的產品，LUYOR-3421不僅能和體視熒光顯微鏡配合使用，也可以單獨做為一臺臺式的熒光蛋白激發光源使用。LUYOR-3421配有20w大功率led，照射面積大，光強度高，可選擇多種波長，能夠觀察BFP、GFP、EGFP、YFP、RFP(dsred、mcherry、tdtomato）等多種熒光蛋白的表達。
LUYOR-3421臺式熒光蛋白激發光源照射頭采用了BNC快速接口，照射模組更換簡單快捷。LUYOR-3421標配調光系統，光強度調整范圍為10-，滿足各種輻照強度需求。
客戶可以隨時購買其他波段，有365nm、405nm、450nm、488nm、505nm、530nm共6種波長可選。

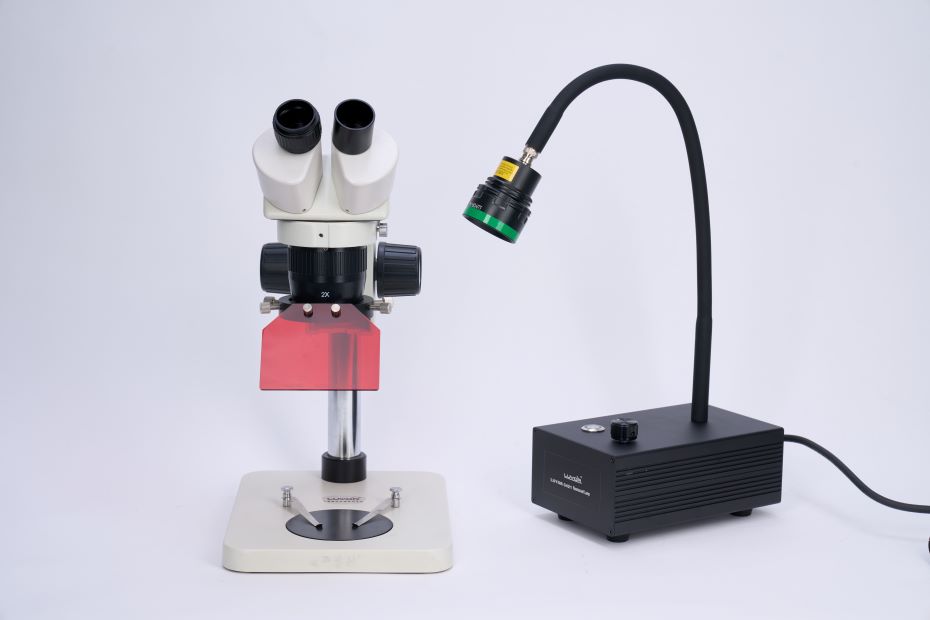

LUYOR-3421體視顯微鏡熒光適配器是為現有體視顯微鏡添加熒光的完整解決方案。它是LUYOR-3420熒光適配器的升級款，光照面積更大，輻照強度更高。LUYOR-3421包括您適應（而不是轉換）常規體視顯微鏡所需的一切。您可以購買現在需要的 6 種模塊化波長組合中的任何一種，并隨時添加更多。
體視顯微鏡熒光適配器LUYOR-3421的性能：
同時可選擇多種熒光蛋白（常用的GFP、EGFP和RFP）
帶控制電路的柔性鵝頸燈座
供電電壓為 220VAC、50/60Hz 和國際插頭組
可安裝在幾乎任何現有體視顯微鏡上的簡單適配器
LED燈頭
可安裝到單反相機上的67mm濾鏡
由匹配過濾材料制成的觀察罩
附加模塊化波長組包括：
LED燈頭
適配器（含67mm拍照濾鏡）
由匹配過濾材料制成的觀察罩
體視顯微鏡熒光適配器LUYOR-3421的波長選擇：
波長組根據激發光的顏色 進行命名和顏色編碼，而不是發射熒光的顏色。
不確定要使用什么？請參閱我們的綜合熒光團表和推薦的 LUYOR波長組。
綠色熒光蛋白熒光適配器：
黃色熒光蛋白熒光適配器：
紅色熒光蛋白熒光適配器：
臺式熒光蛋白激發光源LUYOR-3421模組的技術參數：
| 模塊代碼（顏色） | 激發波長 | 濾鏡 | 適用于的熒光蛋白 |
| UV–紫外線 | 360 – 380nm | 415nm長通 | 觀察DAPI, Hoechst |
| VI –紫羅蘭 | 400 – 415nm | 450nm長通 | 觀察CFP |
| RB –寶藍色 | 440 – 460nm | 500nm長通 | 觀察 熒光蛋白GFP, FITC |
| RB-G –寶藍色，僅綠色 | 440 – 460nm | 500 – 560nm帶通 | eGFP，mGFP，emgfp |
| CY –青色 | 490 – 515nm | 550nm長通 | 觀察YFP,Venus |
| GR –綠色 | 510 – 540nm | 600nm長通 | 觀察 DsRed, TdTomato, RFP |
