使用Luyor 紫外線燈檢測人眼不可見的小至 30μm 的顆粒，并防止?jié)崈羰抑械奈廴?。無論您使用何種清潔方法來清潔加工后的塑料或金屬零件免受污染，您都需要驗證零件是否清潔。

如果用紫外線檢查清潔的零件，您將檢測到人眼無法看到的污染。通過在質量流程中添加紫外線檢查，您可以確保清潔的零件交付給您的客戶。

Clean Room Applications  Using Luyor Ultra Violet Lights

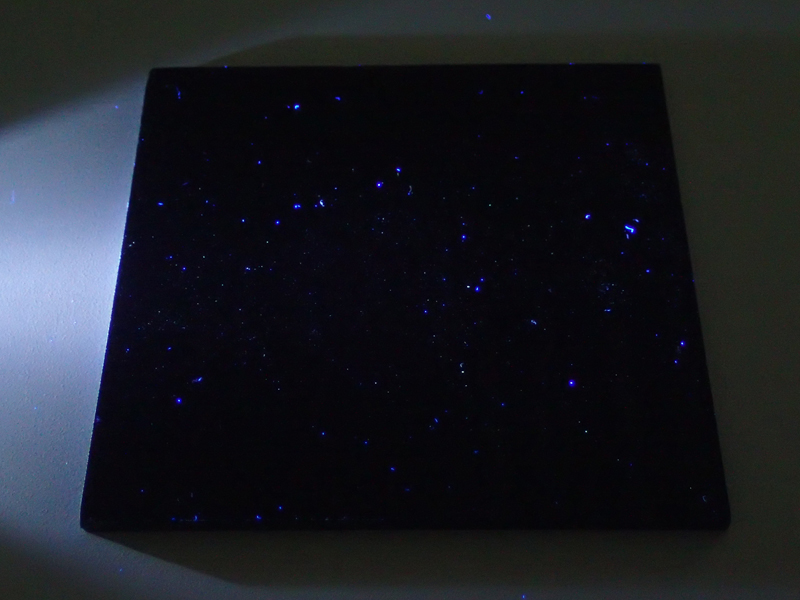

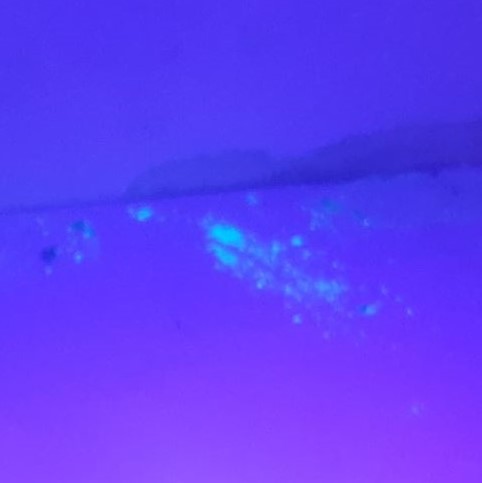

UseLuyor Ultra Violet Lamps to detect particles  as small as 30 μm that are not visible to the  human eye and prevent contamination in the clean room.

Regardless of what cleaning methods you use to clean your machined plastic or metal parts from contamination, you need to validate that the part is clean. If inspecting the cleaned parts with Ultra Violet light, you will detect contamination that is not possible to see with the human eye. By adding UV inspection to your quality process you ensure that clean parts are delivered to your customer.

1.機械部件machined castings

2.清洗cleaning in baths or tanks

3.用紫外線燈檢查inspection with uv light

4.在潔凈室內包裝packaging in clean room, cross flow cabinet or equal

對污染敏感的產品必須在經過認證的潔凈室或清潔的環境中組裝。至關重要的是，零件在進入組件之前必須保持清潔。在進入潔凈室之前，用紫外線照射零件可以降低污染的風險。

Products sensitive to contamination must be assembled in a certified clean room or in a clean environment. It is of utter importance that the parts are clean prior to entering the assembly. Illuminating the parts with Ultra Violet light prior to entering the clean room decreases the risk of contamination

進廠零部件incoming parts

用吸塵器或濕巾清潔 cleaning with vacuum cleaner and wipes

用紫外線燈檢查 inspection with uv light

零件進入潔凈室進行組裝 parts enter clean room for final assembly

如果你的裝配過程不在潔凈室操作，那么橫流柜可能會非常高效。機柜保持空氣清潔，確保裝配過程安全。但是，進入機柜時，零件需要清潔。通過在機柜內用紫外線檢查燈檢查零件，您可以確保零件在組裝前是干凈的。

If your assembly process doesn’t include the use of a classified clean room, a Cross Flow cabinet could be very efficient. The cabinet keeps the air clean and the assembly process secured. However, the parts need to be clean when entering the cabinet. By inspecting the parts with Ultra Violet light inside the cabinet you ensure that the parts are clean prior to being assembled.

檢查步驟：

進廠零部件incoming parts

用吸塵器和濕巾清潔零件clean parts with vacume cleaner and wipes

零件進入橫流柜parts enter cross flow cabinet

在橫流柜中使用紫外線和組裝進行檢查inspection with uv light and assemby in cross flow cabinet

用于半導體行業的紫外線檢查燈主要有：

	用于固定安裝和大面積照射的 Luyor-3124 Luyor-3124 是固定安裝和大面積照射，適合批量生產中紫外線檢查。Luyor-3124 系統是一個模塊化系統，您可以根據需要連接任意數量的 Luyor-3124 紫外線檢查燈，以覆蓋高效檢查所需的檢查面積。產品介紹請瀏覽：吊掛式LED紫外線熒光探傷燈LUYOR-3121 Luyor-3124 for Fixed Installations and Large Coverage  Luyor-3124 is the perfect option for inspection in serial production where a handsfree solution is necessary and large coverage is required. The Luyor-3124 system is a modular system and you can connect as many Luyor-3124 lights as necessary to cover the surface needed for efficient inspection.
	用于大面積照射的 Luyor-3108 Luyor-3108紫外線檢查燈可以手持檢查，也可以通過支架作為臺式檢查燈檢查。大面積照射可以同時照射數個產品部件。您可以通過多種方式安裝 Luyor-3108?？梢酝ㄟ^安裝支架固定在墻上或天花板上。產品介紹：LUYOR-3108系列LED紫外線探傷檢查燈 Luyor-3108 for Large Coverage  Luyor-3108 offers a wide beam for large coverage and hands free inspection. You can inspect several parts at the same time without interruption. You can mount the Luyor-3108 in several ways. Either with a mounting bracket on the wall or ceiling, or a friction arm to mount from a table or floor.
	用于手持檢測的紫外線檢查燈 Luyor-3105 Luorer-3105是一款小型手持紫外線檢查燈。該紫外線檢查燈可用于充電電池供電或交流電源（AC）供電。如果需要免提檢查，該紫外線檢查燈可以輕松安裝臺式支架上。產品介紹：LUYOR-3105/3105D便攜式LED紫外線探傷燈 Luyor-3105 for Hand Held Inspection  Luyor-3105 is a small handheld lamp with excellent coverage for its size. The lamp is available as battery or mains (AC) operation. If a hands free inspection is required the lamp can easily be mounted on a friction arm or on a flexible arm.
	紫外線手電筒 LUYOR提供各種手電筒。用于潔凈室行業受歡迎紫外線手電筒是LUYOR-2130L。重量輕的工具提供高強度紫外線輸出和大面積的照射。LUYOR-2130L紫外線手電筒燈是旨在用于醫療和潔凈室環境。產品介紹：脫脂檢查黑光燈LUYOR-2130L UV Torch Lights  Luyor offers a wide range of torches. The most popular UV torches for clean room applications are the Luyor-2130L. Light weight tools  offering a high intensity and good coverage. Luyor-2130L UV Torch Lights is unique is designed with intended use in medical and clean room environment. The smooth surface makes it easy to clean with iso propanol.
