Laser RPM Sensor ROLS-5PW For Balancing Machines, laser RPM Sensor,Tachometers

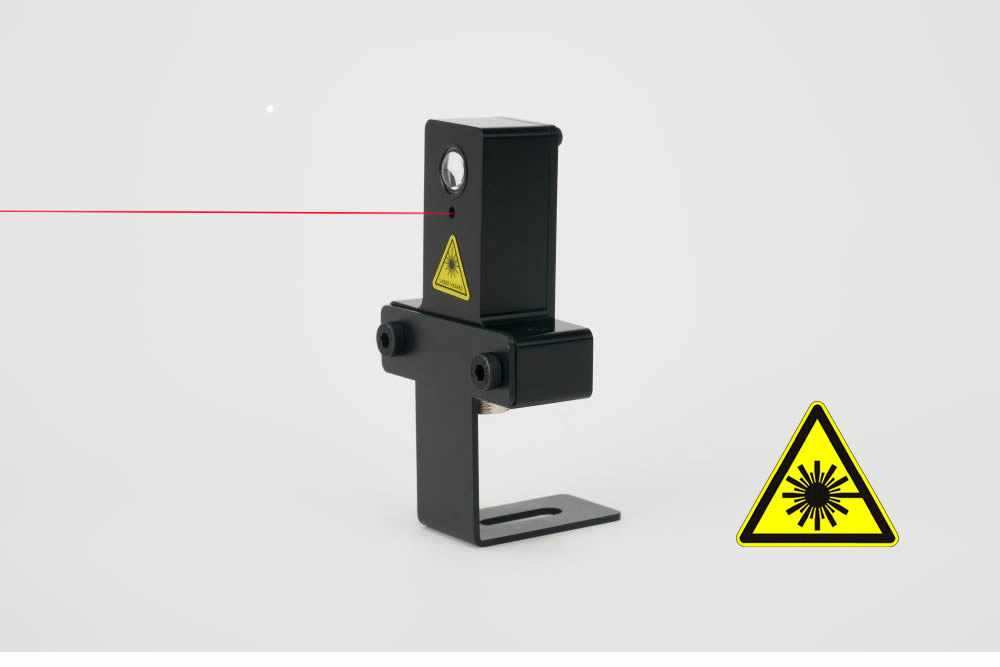

Laser RPM Sensor ROLS-5PW For Balancing Machines, Tachometers， luyor Laser Tachometers contains an integrated voltage regulator, amplifier and anti-aliasing filter encased in highlyresistant nylamid material. Its laser beam allows high precision RPM measurement of rotating components with an effective sensor range.Digital Output，Operation Distance up to 5m，IP60 protection grade.

Laser Tacho Sensor Specifications

輸出信號/Output 脈沖輸出/pulse output

測量范圍/Range:1-300000rpm/1-5000Hz

測量距離/Operation distance:7米/Up to 7 m

供電電壓/Power supply:5 V

工作電流/Current:< 30 mA

短路保護/Short circuit protection:Yes

反向保護/Reverse Voltage protection:有/Yes

過電壓保護/Over-Voltage protection:15V 1分鐘/15 V - 1 minute

工作溫度/Operation Temp:-10 - 50°C

保存溫度/Storage Temp:-40 - 85°C

防護等級/Protection grade:IP 60

抗沖擊等級/Impact resistance:IEC 60028-27

材料/Material:尼龍/Nylamid

質量/Weight:28 g

延長電纜/Extension cable:up to 100 m

標準配置/Accessories:2.4米電纜，反光貼紙

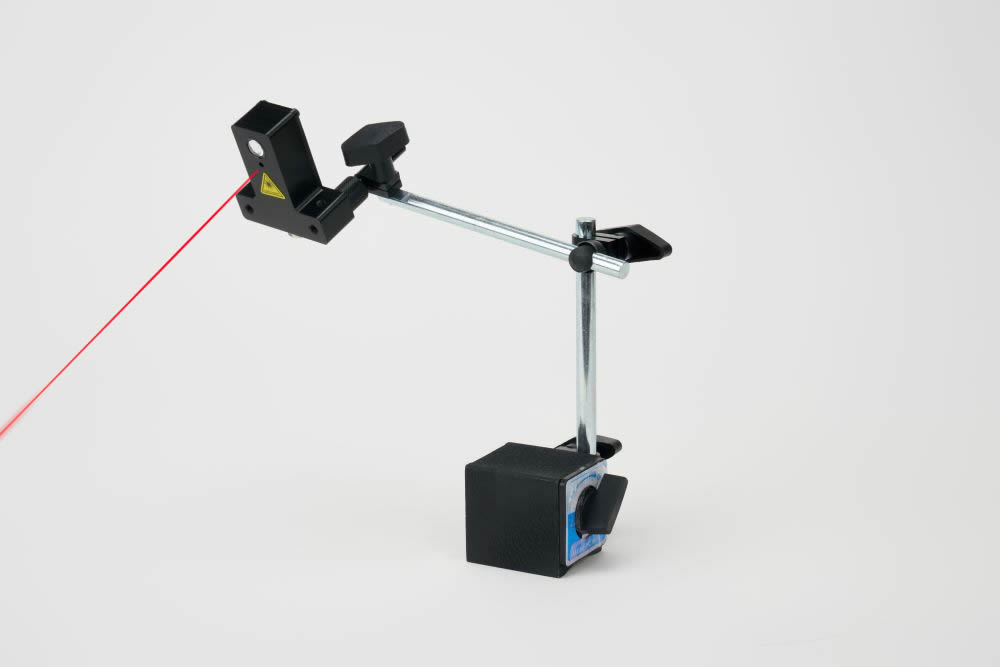

可選配件/Optional Accessories:磁性底座/Magnetic base

連接器接線：Connector configuration

   棕色線：電源5V, 黑色線: 信號線, 藍色線：接地

 Laser Tacho Sensor Applications

• Non-contact rotational speed measurements

• Automotive

• Aerospace

• Research and Development

• Universities

• For Balancing Machines, Tachometers

LASER TACHO PROBE USE SCENARIOS

• Non-contact measurement of rotational speed

• Synchronisation between rotating or reciprocating machine elements and measurement instruments

• Low-speed measurements to 0 RPM* for wind turbine and ship propulsion applications

• High-speed measurements up to 300000 RPM for supercharger measurements
