近日浙江省農科院在《Journal of Advanced Research》發表文獻《Development of a novel Cas13a/Cas12a-mediated 'one-pot' dual detection assay for genetically modified crops》。文獻中使用LUYOR-3415RG便攜式雙波長熒光蛋白激發光源檢測轉基因作物。

文獻摘要:

開發一種新型 Cas13a/Cas12a 介導的轉基因作物“一鍋”雙重檢測方法

轉基因（GM）作物已在世界各地廣泛種植，開發適合田間部署的快速、超靈敏、視覺多重檢測平臺對于轉基因生物調控至關重要。在這項研究中，我們開發了一種新型一鍋法系統，稱為 MR-DCA（多重 RPA 和雙重 CRISPR 檢測），用于同時檢測轉基因作物中的基因靶標。這種創新方法將多重 RPA（重組酶聚合酶擴增）與雙 CRISPR（成簇規則間隔短回文重復）測定技術相結合，為轉基因作物檢測提供了一種簡化且高效的方法。用于擴增和靶標的 RPA 反應包含在管底座中，而雙 CRISPR 酶則放置在管蓋中。離心后，啟動雙 CRISPR (Cas13a/Cas12a) 檢測系統。使用熒光可視化通過 FAM 通道和 HEX 通道進行測量。使用側流試紙條時，使用兔抗地高辛（藍線）進行檢測，同時使用抗小鼠 FITC（紅線）進行識別。使用 Image J 量化線強度并以圖形方式描繪。 35分鐘內完成目標檢測，檢測限低至20個拷貝。此外，還開發了兩種分析系統，它們?cè)?MR-DCA 測定中表現良好。在對來自廣泛基因組范圍的轉基因作物的24個盲樣進行分析時，MR-DCA給出了與定量PCR方法一致的結果，表明了較高的準確性、適用性和半定量能力。 MR-DCA的發展代表了GM檢測領域的重大進步，為可在資源有限的環境中使用的多目標檢測提供了快速、靈敏和便攜的方法。

Development of a novel Cas13a/Cas12a-mediated 'one-pot' dual detection assay for genetically modified crops

Genetically modified (GM) crops have been widely cultivated across the world and the development of rapid, ultrasensitive, visual multiplex detection platforms that are suitable for field deployment is critical for GM organism regulation. In this study, we developed a novel one-pot system, termed MR-DCA (Multiplex RPA and Dual CRISPR assay), for the simultaneous detection of and genetic targets in GM crops. This innovative approach combined Multiplex RPA (recombinase polymerase amplification) with the Dual CRISPR (clustered regularly interspaced short palindromic repeat) assay technique, to provide a streamlined and efficient method for GM crop detection. The RPA reaction used for amplification and targets was contained in the tube base, while the dual CRISPR enzymes were placed in the tube cap. Following centrifugation, the dual CRISPR (Cas13a/Cas12a) detection system was initiated. Fluorescence visualization was used to measure through the FAM channel and through the HEX channel. When using lateral flow strips, was detected using rabbit anti-digoxin (blue line), whilst was identified using anti-mouse FITC (red line). Line intensity was quantified using Image J and depicted graphically. Detection of the targets was completed in 35 min, with a limit of detection as low as 20 copies. In addition, two analysis systems were developed and they performed well in the MR-DCA assay. In an analysis of 24 blind samples from GM crops with a wide genomic range, MR-DCA gave consistent results with the quantitative PCR method, which indicated high accuracy, applicability and semi-quantitative ability. The development of MR-DCA represents a significant advancement in the field of GM detection, offering a rapid, sensitive and portable method for multiple target detection that can be used in resource-limited environments.

MR-DCA combined the RPA reaction with Cas13a/Cas12a digestion in a one-pot reaction system. The 40 μL one-pot reaction assay consisted of 15 μL multiplexed-

RPA-MIX, 2 μL DNA, 1 μL B buffer, 1×Cas-reaction buffer, 100 nM 13-35S-crRNA, 100 nM 12-NOS-crRNA, 1 μM quenched fluorescent ssRNA reporter, 1 μM quenched

fluorescent ssDNA reporter, 0.1×Transcription buffer (contain rNTP MIX) and 0.5 μL RNase inhibitor, enzyme MIX (100 nM Cas13a, 100 nM Cas12a and 0.5 μL T7 RNA

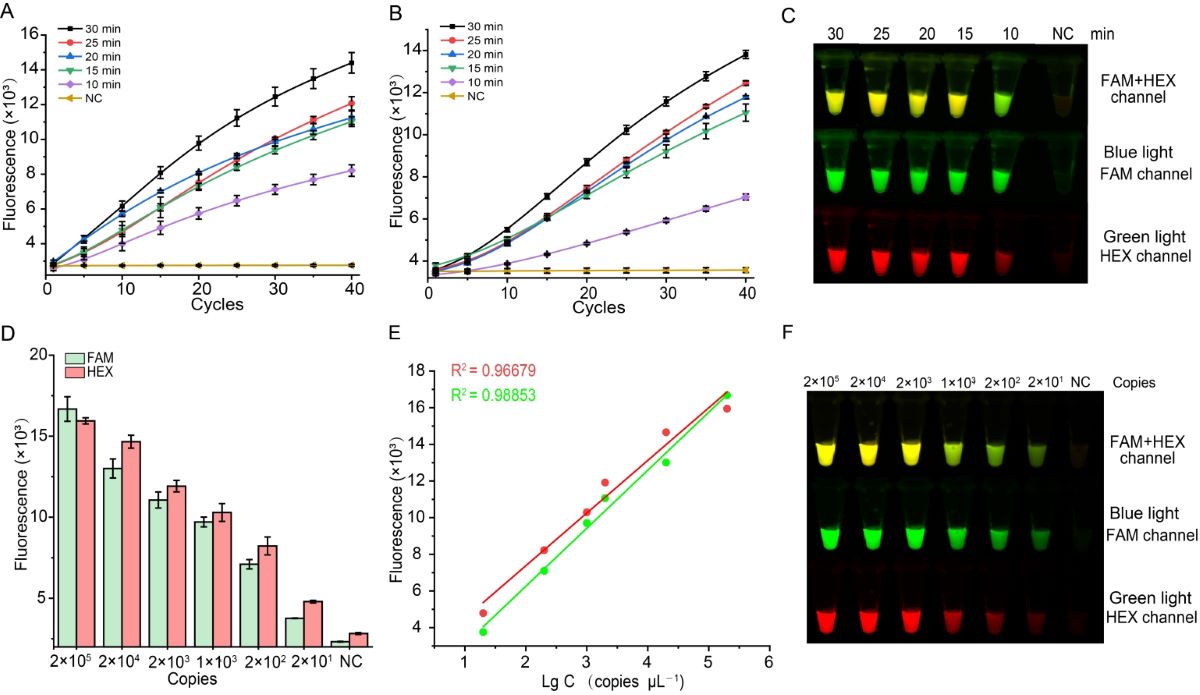

polymerase) was initially added on the tube cap and add nuclease-free water to 40 μL. After RPA reaction for 15 min, enzyme mix was centrifuged into the reaction solution, then the reaction was performed at 37 °C for 20 min on CFX96 Real-Time PCR system with fluorescence measurements taken every 30s. In System 1, the ChemiDoc Touch Imaging System (Bio Rad, Hercules, CA, USA) was used to observe the green-redyellow fluorescence. For on-site detection, a handheld LUYOR-3415RG instrument (LUYOR, USA) can be equipped with a 494-nm excitation filter for the FAM reporter (green) and a 535-nm excitation filter for the HEX reporter (red).

DOI: 10.1016/j.jare.2024.07.027
